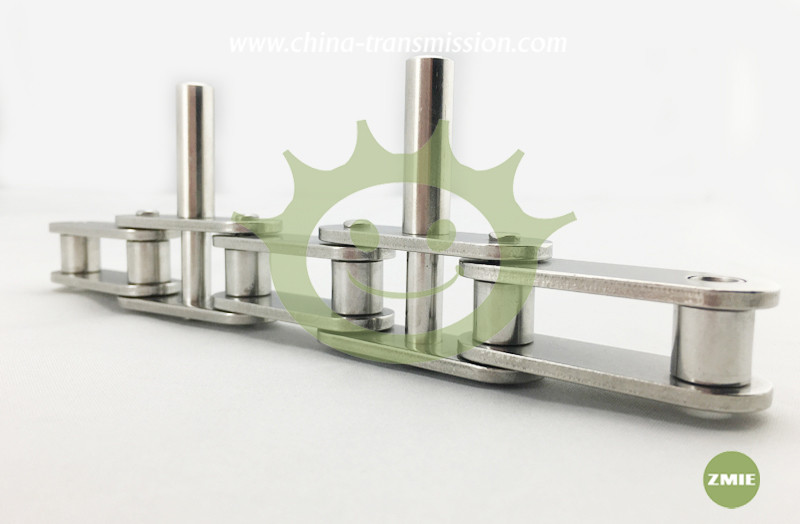

Stainless steel conveyor chain with extend pins
| Group | Conveyor chains |
|---|---|
| Min. Order | 1 meter |
| Terms of Payment | all |
| Update Time | 2017-01-05 |
Description
Stainless steel conveyor chain with extend pins
| ZMIE Chain No. | P | b1 | d2 | d3 | d4 | L3 | L |
| mm | mm | mm | mm | mm | mm | mm | |
| C212AH-D5 | 38.10 | 12.57 | 5.94 | 5.94 | 8.00 | 25.00 | 53.00 |
| C212AHF4 | 38.10 | 12.57 | 5.94 | 8.08 | 10.00 | 35.00 | 63.00 |
| C212AHF7 | 38.10 | 12.57 | 5.94 | 5.94 | 12.70 | 41.20 | 69.20 |
| C212AHF8 | 38.10 | 12.57 | 5.94 | 5.94 | 14.28 | 41.20 | 69.20 |
